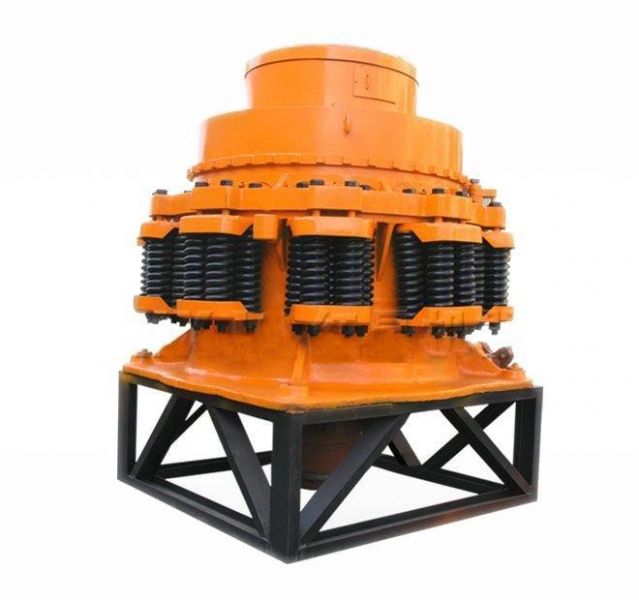

圓錐破碎機
|
規格型號 |
破碎圓錐大端直徑 |
給料塊最大尺寸 |
排料口寬度尺寸 |
生產量 |
彈簧總壓力 |
電動機Motor |
重量 |
|
|
Standard Model |
Bigger dia. size of cone (mm) |
Max feeding size (mm) |
Width of Exit (mm) |
Capacity (t/h) |
Total pressure of spring (t) |
型號Model |
功率Power (kW) |
Weight (kg) |
|
600超細碎 600 Super fine |
Φ600 |
45 |
3-13 |
10-20 |
40 |
Y200L2-6 |
22 |
5874 |
|
900超細碎 900 Super fine |
Φ900 |
60 |
6-13 |
15-50 |
70 |
JS115-6 |
75 |
13868 |
|
PYD1200 |
Φ1200 |
60 |
3-15 |
15-95 |
70 |
JS126-8 |
110 |
23900 |
|
PYZ1200 |
Φ1200 |
98 |
8-25 |
42-135 |
150 |
JS126-8 |
110 |
25000 |
|
PYD1750 |
Φ1750 |
85 |
5-15 |
75-230 |
300 |
JS128-8 |
155 |
50300 |
|
PYZ1750 |
Φ1750 |
183 |
10-30 |
175-320 |
249 |
JS128-8 |
155 |
51000 |
