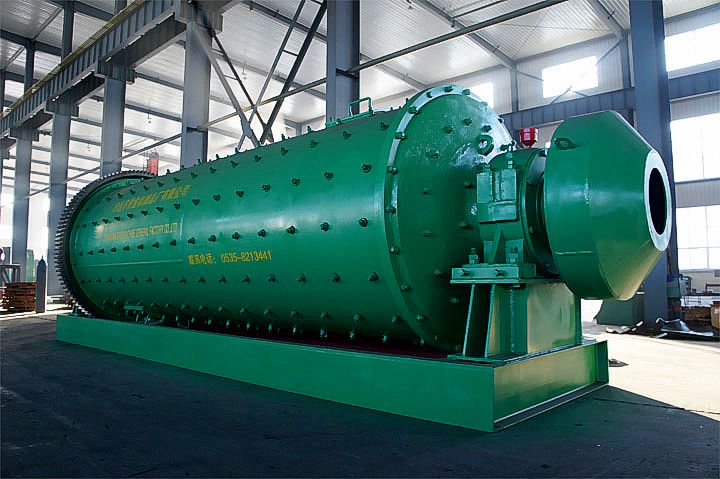

Rolling Bearing Ball Mill
|
型號 |
規(guī)格 |
筒體轉(zhuǎn)速 |
裝球重量 |
給料粒度 |
出料粒度 |
產(chǎn)量 |
電動機Motor |
外形尺寸(mm) |
重量(kg) |
|
|
Model |
Standards |
Barrel rotating speed(r/min) |
Weight with balls(t) |
Max Feeding size (mm) |
Output Size (mm) |
Capacity (t/h) |
型號Model |
功率Power (kW) |
Dimension (LxWxH) (mm) |
Weight (kg) |
|
GMG(Y)0918 |
Φ900x1800 |
41.6 |
1.6 |
15 |
0.074-0.3 |
0.58-1.3 |
Y200L-1 |
18.5 |
3510x3668x1754 |
7000 |
|
GMG(Y)0932 |
Φ900x3200 |
41.6 |
3 |
15 |
0.074-0.3 |
0.9-2.3 |
Y225M-6 |
30 |
3910x3668x1754 |
7260 |
|
GMG(Y)1212 |
Φ1200x1200 |
35.2 |
2.4 |
20 |
0.074-0.6 |
0.4-2.19 |
Y250S-8 |
18.5 |
5320x2850x2540 |
9028 |
|
GMG(Y)1224 |
Φ1200x2400 |
35.2 |
4.8 |
20 |
0.075-0.6 |
0.8-7.5 |
Y280S-8 |
37 |
3920x2850x2540 |
11450 |
|
GMG(Y)1250 |
Φ1200x5000 |
31 |
7.4 |
20 |
0.074-0.6 |
2.3-11.7 |
JR115-8 |
60 |
6520x2850x2540 |
15000 |
|
GMG(Y)1515 |
Φ1500x1500 |
31 |
5.5 |
30 |
0.074-0.6 |
1.1-3.7 |
Y280M-8 |
45 |
5033x2828x2490 |
14299 |
|
GMG(Y)1530 |
Φ1500x3000 |
31 |
10 |
30 |
0.074-0.6 |
3.3-8.8 |
JR117-8 |
80 |
7465x2938x2490 |
17700 |
|
GMG(Y)1536 |
Φ1500x3600 |
31 |
10 |
30 |
0.074-0.6 |
3.5-11 |
JR125-8 |
95 |
8190x2938x2490 |
19560 |
|
GMG(Y)1545 |
Φ1500x4500 |
27.6 |
12 |
30 |
0.074-0.6 |
3.0-16.5 |
JR126-8 |
110 |
7924x3178x2490 |
21080 |
|
GMG(Y)1557 |
Φ1500x5700 |
27.6 |
16 |
30 |
0.074-0.6 |
3.6-25 |
JR127-8 |
130 |
10024x3178x2490 |
23676 |
|
GMG(Y)1826 |
Φ1830x2600 |
25.2 |
11 |
25 |
0.074-0.6 |
2-15 |
JR126-8 |
110 |
7830x3743x3394 |
30533 |
|
GMG(Y)1830 |
Φ1830x3000 |
25.2 |
12.5 |
25 |
0.074-0.6 |
2.3-18 |
JR128-8 |
155 |
8505x3911x3394 |
32520 |
|
GMG(Y)1836 |
Φ1830x3600 |
25.2 |
15 |
25 |
0.074-0.6 |
2.5-21 |
JR128-8 |
155 |
9105x3911x3394 |
34125 |
|
GMG(Y)1856 |
Φ1830x5600 |
25.2 |
21 |
25 |
0.074-0.6 |
4-30 |
JR138-8 |
245 |
11105x3911x3394 |
43463 |
|
GMG(Y)2122 |
Φ2100x2200 |
23.8 |
15.7 |
25 |
0.074-0.6 |
3-24 |
JR128-8 |
155 |
7700x4700x4400 |
37304 |
|
GMG(Y)2130 |
Φ2100x3000 |
23.8 |
20 |
25 |
0.074-0.6 |
4-30 |
JR136-8 |
180 |
8500x4700x4400 |
41900 |
|
GMG(Y)2137 |
Φ2100x3750 |
23.8 |
25 |
25 |
0.074-0.6 |
5-37.5 |
JR137-8 |
210 |
9250x4700x4400 |
45355 |
|
GMG(Y)2140 |
Φ2100x4000 |
23.8 |
25 |
25 |
0.074-0.6 |
5.2-40 |
JR138-8 |
245 |
9713x4023x3394 |
47709 |
|
GMG(Y)2145 |
Φ2100x4500 |
23.8 |
26 |
25 |
0.074-0.6 |
5.6-42 |
JR138-8 |
245 |
10213x4023x3394 |
48912 |
|
GMG(Y)2170 |
Φ2100x7000 |
23.8 |
39 |
25 |
0.074-0.6 |
8.7-65 |
JR158-8 |
380 |
12797x4287x3394 |
62600 |
|
GMG(Y)2275 |
Φ2200x7500 |
21 |
42.5 |
25 |
0.074-0.6 |
8.4-63 |
JR158-8/JR1510-8 |
380/475 |
13745x5549x3794 |
73819/72523 |
|
GMG(Y)2430 |
Φ2400x3000 |
23 |
22.2 |
25 |
0.074-0.6 |
5.5-69 |
JR1410-8 |
280 |
9160x5464x3966 |
62104 |
|
GMG(Y)2436 |
Φ2400x3600 |
23 |
26.6 |
25 |
0.074-0.6 |
6.5-82 |
JR1410-8 |
280 |
9760x5464x3966 |
66517 |
|
GMG(Y)2445 |
Φ2400x4500 |
23 |
33.3 |
25 |
0.074-0.6 |
8.1-100 |
JR1510-8 |
320 |
10660x5464x3966 |
73420 |
|
GMG(Y)2475 |
Φ2400x7500 |
23 |
54 |
25 |
0.074-0.6 |
12-165 |
JR1512-8 |
570 |
14180x5620x3966 |
96760 |
|
GMG(Y)2736 |
Φ2700x3600 |
21.7 |
34 |
25 |
0.074-0.6 |
15-118 |
JR1510-8 |
475 |
10740x5939x4510 |
89015 |
|
GMG(Y)2756 |
Φ2700x5600 |
21.7 |
43 |
25 |
0.074-0.5 |
15-141 |
TDMK500-32/2150 |
500 |
13277x5800x4675 |
107725 |
|
GMG(Y)3236 |
Φ3200x3600 |
18.5 |
51 |
25 |
0.074-0.5 |
86-100 |
TDMK630-36/2600 |
630 |
14254x6731x5201 |
33541 |
|
GMG(Y)3245 |
Φ3200x4500 |
18.5 |
61 |
25 |
0.074-0.5 |
86-100 |
TDMK800-36/2600 |
800 |
15354x6731x5201 |
141212 |
|
GMG(Y)3256 |
Φ3200x5600 |
18.5 |
79 |
25 |
0.074-0.5 |
95-120 |
TDMK1000-36 |
1000 |
16456x6731x5201 |
152680 |
|
GMG(Y)3645 |
Φ3600x4500 |
17.3 |
88 |
25 |
0.074-0.5 |
110-140 |
TDMK1250-40 |
1250 |
15000x7200x6300 |
161230 |
|
GMG(Y)3660 |
Φ3600x6000 |
17.3 |
111 |
25 |
0.074-0.5 |
160-220 |
TDMK1600-40 |
1600 |
17000x7700x6300 |
185662 |
